Description
The Epi 1a Is Suitable For Embedding In Various Ai Vision Products And Can Be Widely Used In Face Recognition Panels, Ai Binocular Cameras, Ip Cameras, Smart Communities, Smart Access Control/Peepholes, Face Payment, Vision-Assisted Driving, Security/Monitoring/Police Applications, Etc.
Epi 1a Can Directly Replace Products From Various Brands.
EPI 1A Hardware Features:
| Project | Parameter Indicators |
| Processor | Rockchip RV1126B-P, quad-core ARM Cortex-A53 64-bit architecture, 3 Tops NPU |
| Memory | 1/2/4GB LPDDR4 |
| Storage | 16/32/64GB eMMC |
| External Storage | Standard Micro SD Card |
| Wi-Fi + Bluetooth | 2.4G/5G Wi-Fi+BT 4.2 |
| Ethernet | 10/100Mbps Ethernet |
| Display | 1×4-lane MIPI-DSI, Maximum resolution 1920×1080@60fps |
| Camera | 2×4-lane MIPI-CSI |
| USB | 1 x USB 2.0 OTG, Type-C interface
4 x USB 2.0 HOST, USB-A interface |
| Audio | 3.5mm headphone jack
1 x PH2.0 amplifier interface, supporting 1.3W mono speaker output |
| Buttons | 1xReset，1xPoweron，1xRecovery |
| RTC | 1×1.27mm spacing spare battery connector |
| 40PIN | The 40-pin expansion interface supports the following functions:
DEBUG, GPIO, UART, PWM, SPI, I2C, etc. |
| Power | Type-C 5V 2A Power Adapter
1 x PH2.0 5V Power Connector |
| PCB | 85mm x 56mm x 1.6mm (same size as Raspberry Pi) |
| Weight | 47g |

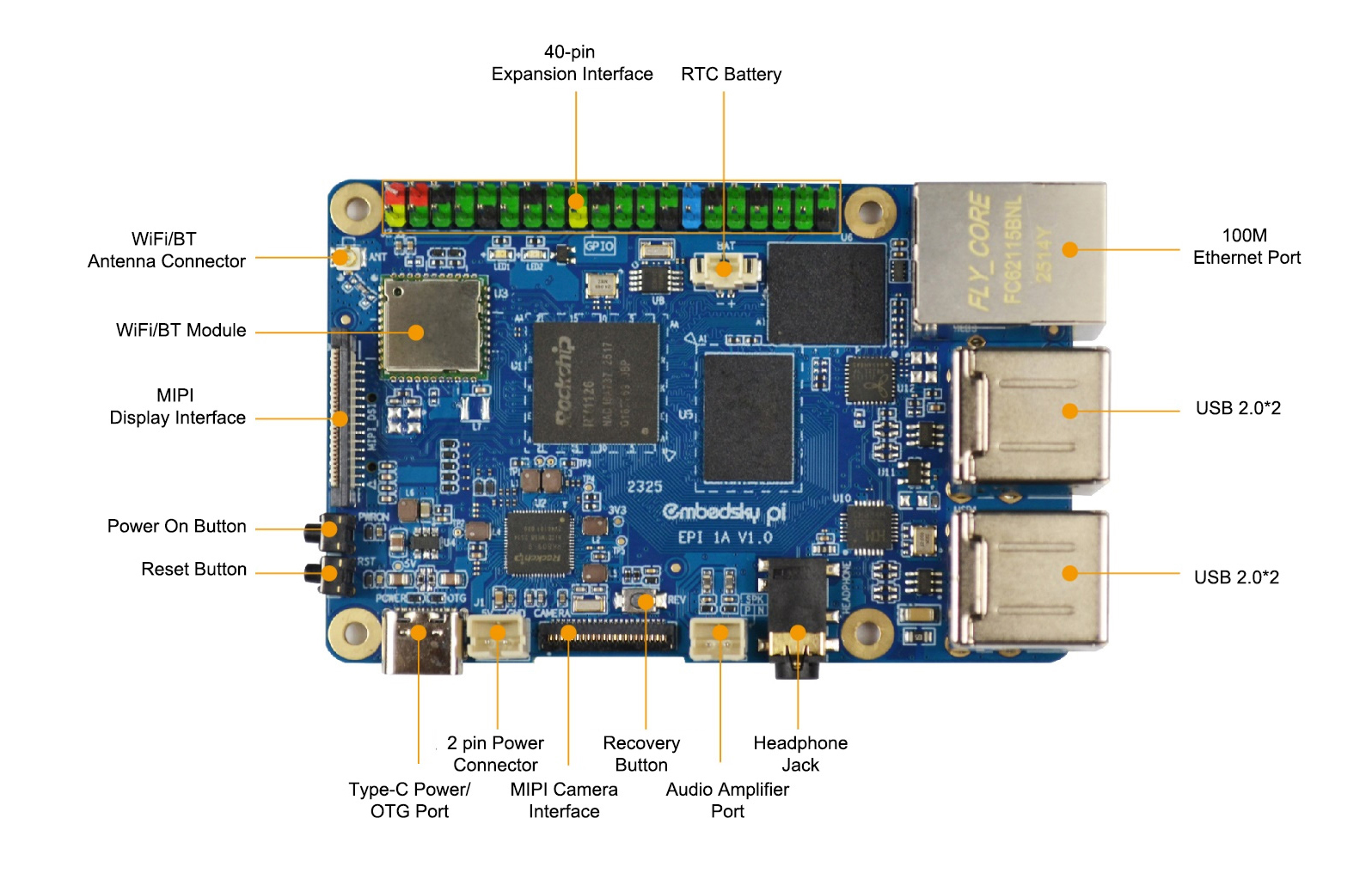

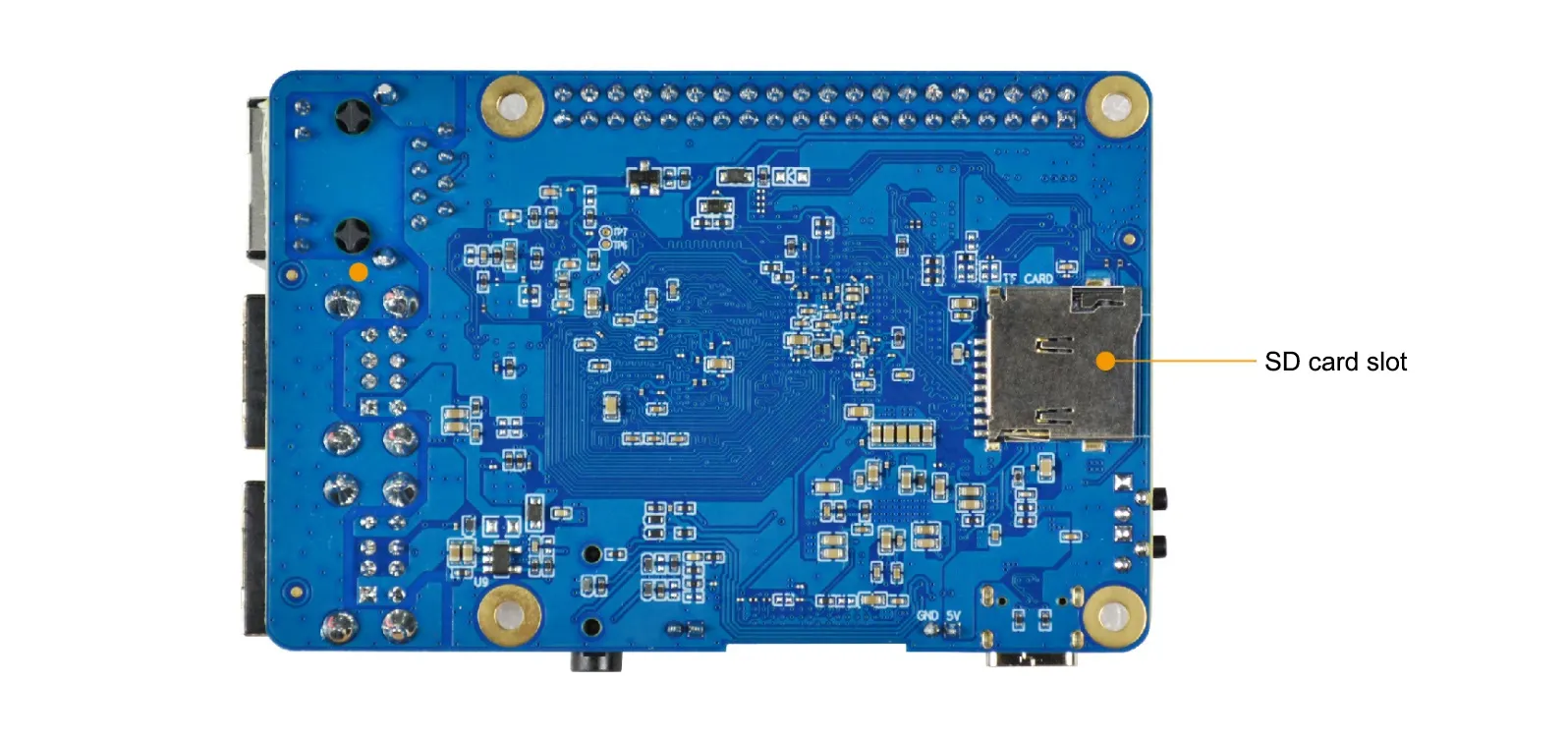

EPI 1A Interface Diagram:
